SELLING POINTS
Fast Cooling
Fast Cooling
At startup, the compressor ramps up to 50 Hz at high speed (5 times the normal rate), maintains this frequency for 1 minute, and then continues to increase the frequency to quickly reach the set temperature, resulting in higher cooling efficiency.
Self-Cleaning
Self-Cleaning
4-Step Water Wash + Disinfection (Total runtime: 63 min)
① Condensation and Soaking: Runs in cooling mode with low fan speed to condense water droplets on the evaporator surface, saturating adhered dust and softening grime (2 min)
② Frosting and Dirt Removal: Water freezes into frost, expanding in volume to dislodge dust from the fin surfaces (9 min)
③ Condenser Frosting: Frost forms on the outdoor unit → defrosting; the defrost water automatically cleans the condenser (8 min)
④ Refreshing Air Purge: The indoor and outdoor fans operate at high speed for 3 minutes to expel residual moisture and fine dust, keeping the interior dry and fresh (3 min)
① Condensation and Soaking: Runs in cooling mode with low fan speed to condense water droplets on the evaporator surface, saturating adhered dust and softening grime (2 min)
② Frosting and Dirt Removal: Water freezes into frost, expanding in volume to dislodge dust from the fin surfaces (9 min)
③ Condenser Frosting: Frost forms on the outdoor unit → defrosting; the defrost water automatically cleans the condenser (8 min)
④ Refreshing Air Purge: The indoor and outdoor fans operate at high speed for 3 minutes to expel residual moisture and fine dust, keeping the interior dry and fresh (3 min)
Anti-Corrosion Evaporator
Anti-Corrosion Evaporator
Corrosion-resistant coatings on evaporator surfaces to withstand harsh conditions such as high salinity, high temperatures, and high humidity
Golden Fin
Golden Fin
By applying a high-performance hydrophilic coating to the surface of the aluminum foil, this solution not only enhances heat transfer efficiency but also provides corrosion, mildew, and stain resistance.
Product Parameters

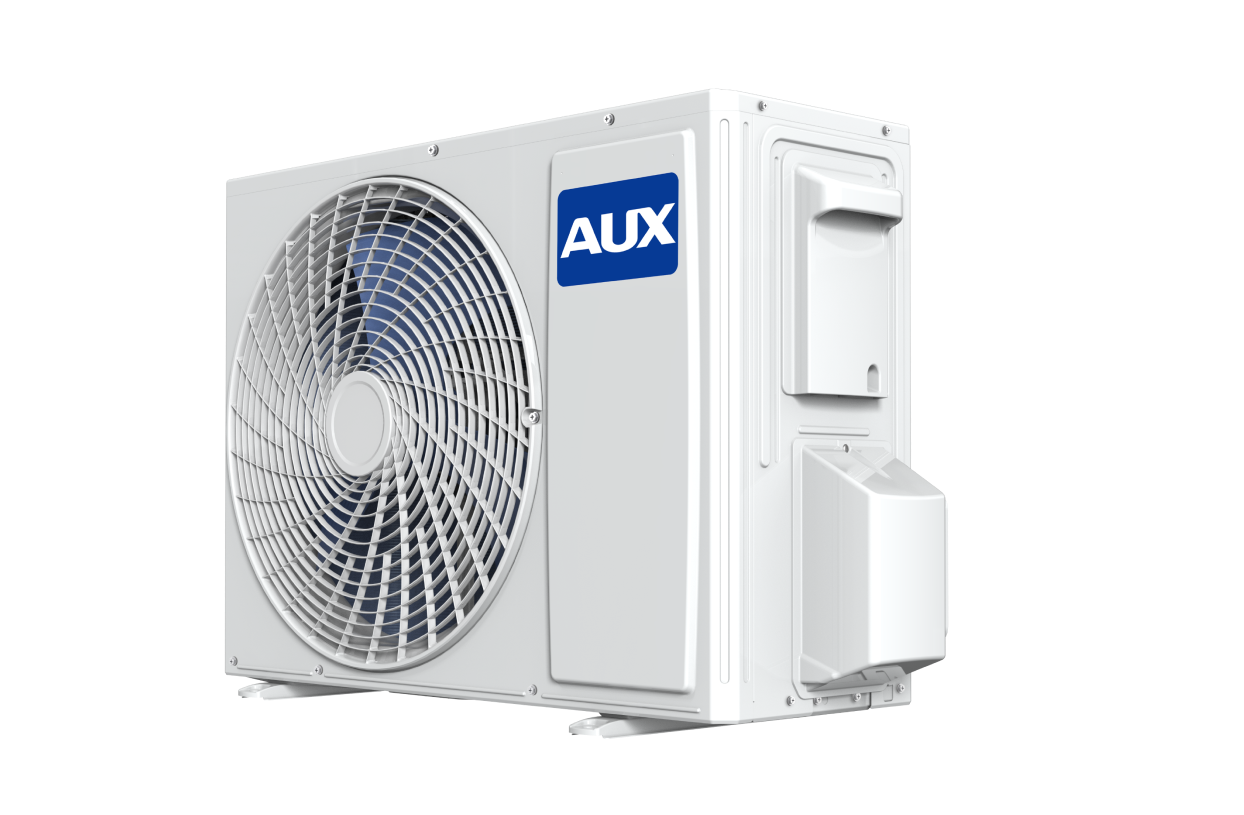

CU Standard
| PRODUCT SPECIFICATION SHEET | 5K | 9k | 12k | 18k | ||
| Nameplate Parameter | ||||||
| Rated Capacity | Cooling | KW | 1.47 | 2.64 | 3.52 | 5.13 |
| Rated Power Consumption | W | 385 | 740 | 1000 | 1510 | |
| Rated Running Current | A | 1.8 | 3.5 | 4.5 | 7.0 | |
| Max. Input Power | W | 700 | 1400 | 1800 | 2200 | |
| Max. Input Current | A | 3.5 | 6 | 8.4 | 12.5 | |
| CSPF cooling | W/W | 3.79 | 3.79 | 3.73 | 3.4 | |
| Power supply source | V/Ph/Hz | 220-240V~/50Hz | 220~240V/50Hz | 220-240V-1-50Hz | 220-240V/1/50Hz | |
| Refrigerant | / | R32 | R32 | R32 | R32 | |
| Air Flow Volume | m3/h | 500 | 600 | 690 | 950 | |
| Indoor Noise level | dB(A) | 40/35/32/29 | 44/39/35/31 | 44/40/36/32 | 47/42/38/35 | |
| Outdoor Noise level | dB(A) | 48 | 50 | 48 | 51 | |
| Indoor unit weight(Net) | Kg | 7.5 | 8.5 | 9 | 11.5 | |
| Outdoor unit weight(Net) | Kg | 18.5 | 25 | 27 | 35 | |
| Indoor unit configuration | ||||||
| Dimension | Packing Type(6 face/4 face) | / | 6 | 6 | 6 | 6 |
| Net Dimension(WxDxH) | mm | 716*285*194 | 776*298*202 | 834*299*202 | 1002*318*223 | |
| Packing Dimension(WxDxH) | mm | 774*354*274 | 831*371*282 | 891*371*282 | 1070*385*312 | |
| Outdoor unit configuration | ||||||
| Dimension | Net Dimension(WxDxH) | mm | 650*455*233 | 730*545*295 | 730*545*295 | 800*545*315 |
| Packing Dimension(WxDxH) | mm | 760*510*315 | 843*586*360 | 843*586*360 | 905*615*372 | |
| Connect pipe | ||||||
| Liquid tube Diameter | Inch | 1/4" | 1/4" | 1/4" | 1/4" | |
| Gas tube Diameter | Inch | 3/8" | 3/8" | 1/2" | 1/2" | |
| Container Loading 20/40/40HC | unit | 156/324/367 | 112/237/264 | 108/229/260 | 84/174/205 | |
