No.3 in globalSplit ACs (2018-2024)
SELLING POINTS
4D Airflow
4D Airflow
Multi-dimensional airflow through two stepper motors for all up-down and left blowing.
Long-distance Air Supply
Long-distance Air Supply
Long-range airflow is achieved by optimizing the duct design and fan speed; AP(48k)15 m, AD: 25 m, BQA: 10 m.
Anti-mold Drying
Anti-mold Drying
After shutdown, the system automatically switches to heating mode (ventilation for single-cooling units) to dry moisture from the evaporator.
Golden Fin
Golden Fin
By applying a high-performance hydrophilic coating to the surface of the aluminum foil, this solution not only enhances heat transfer efficiency but also provides corrosion, mildew, and stain resistance.
Product Parameters

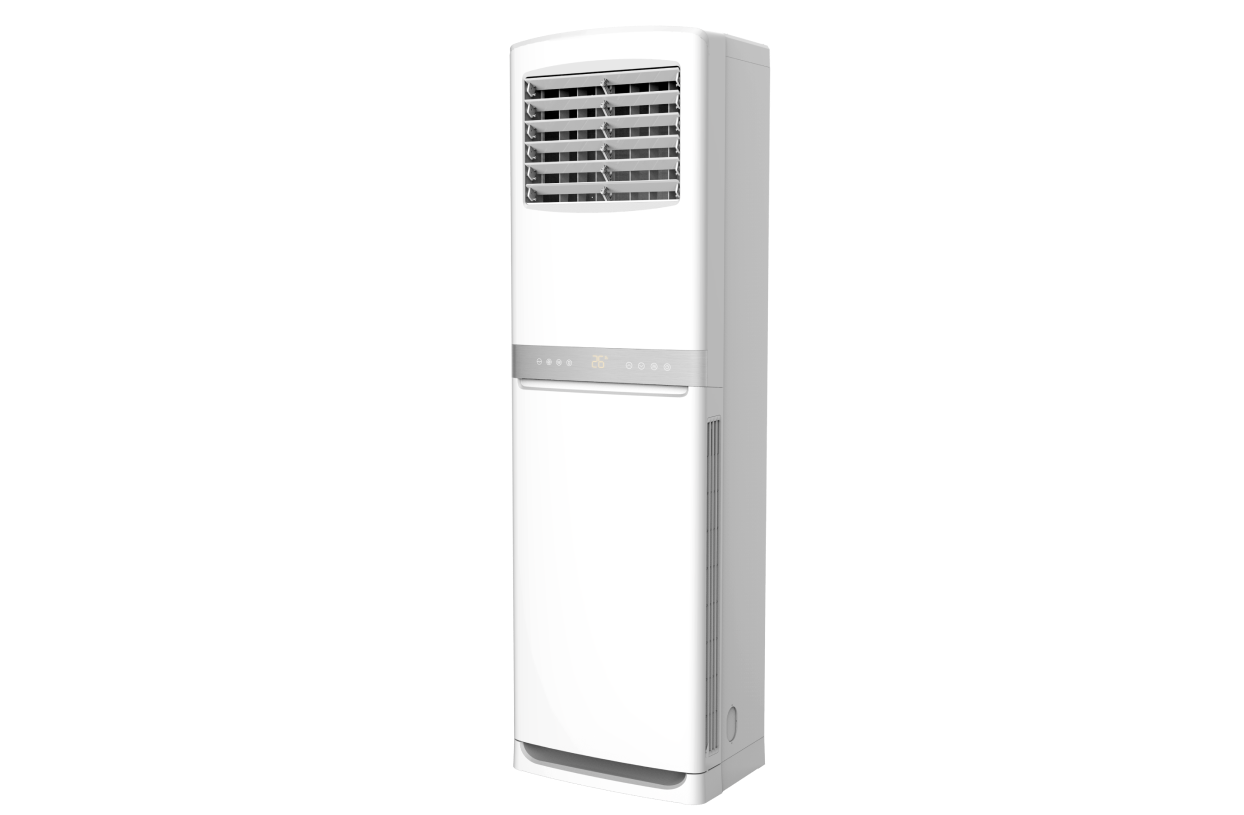

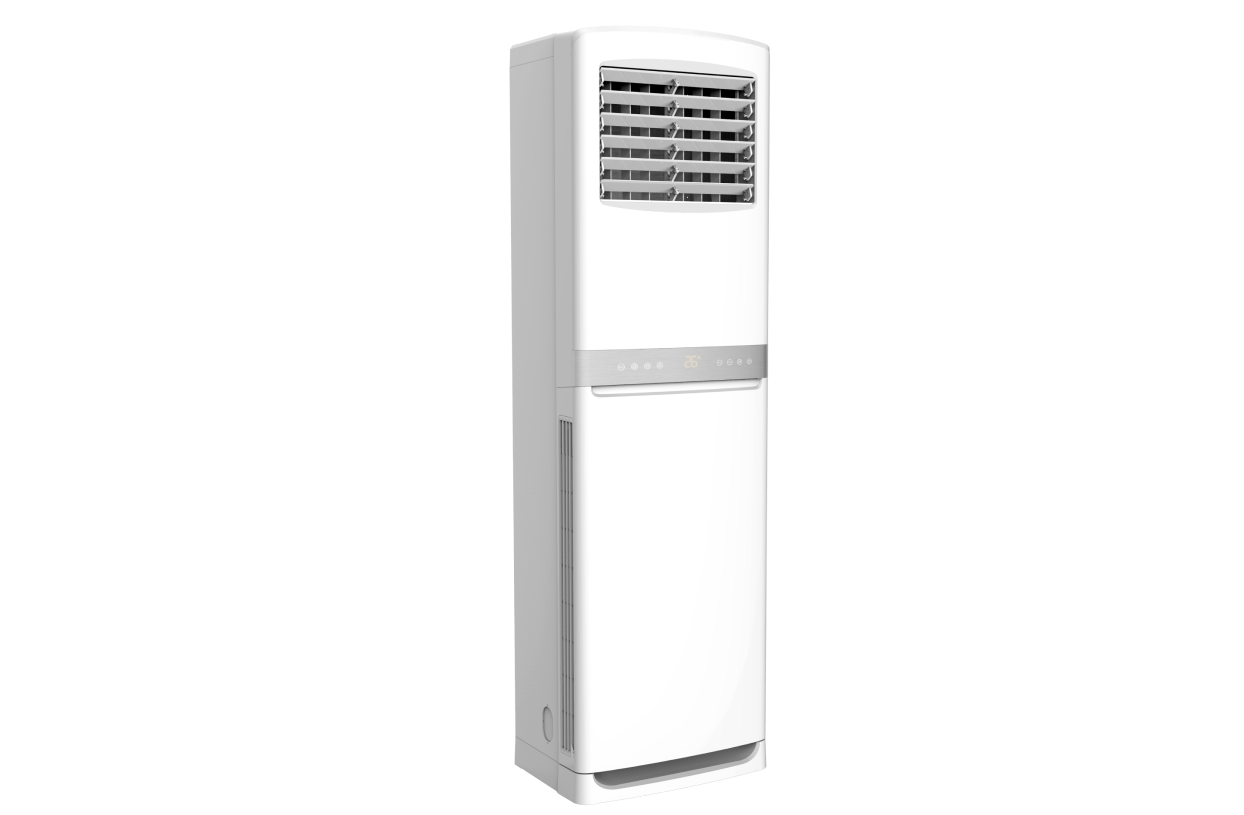

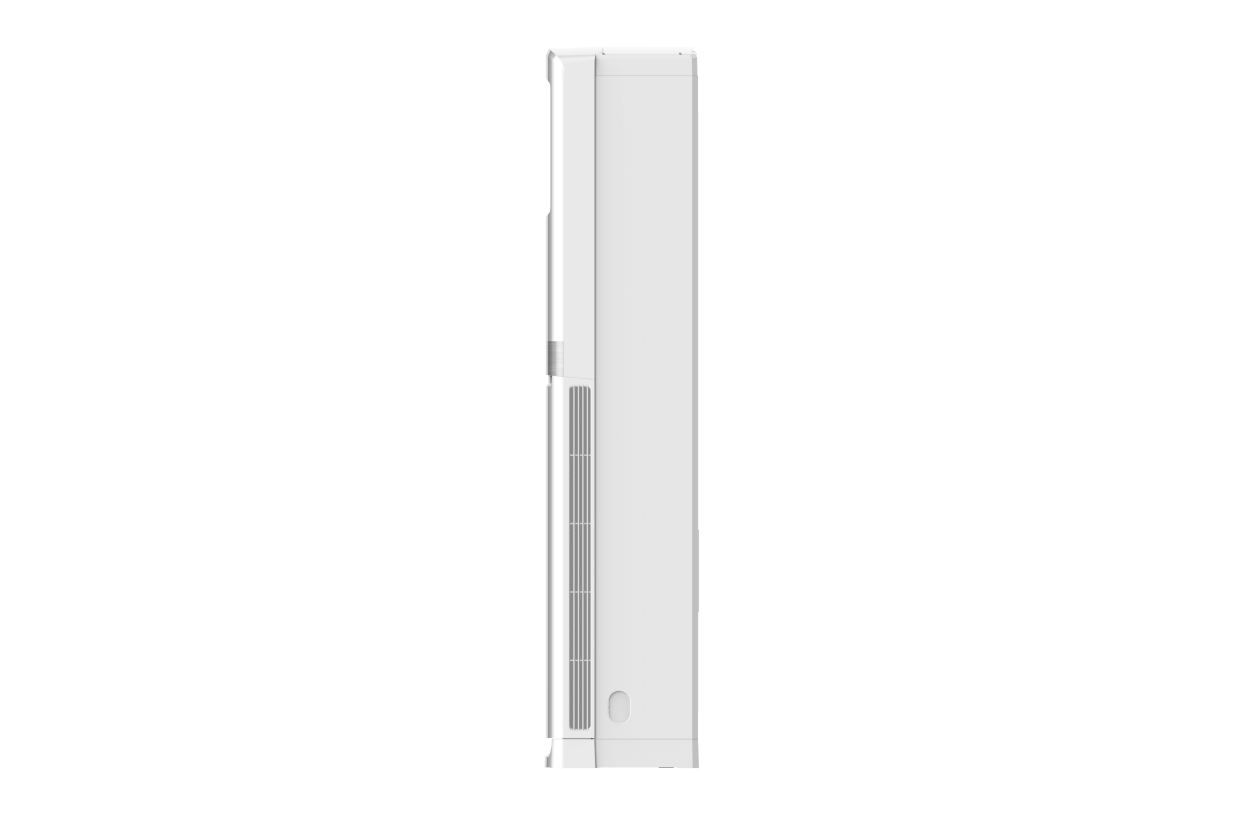

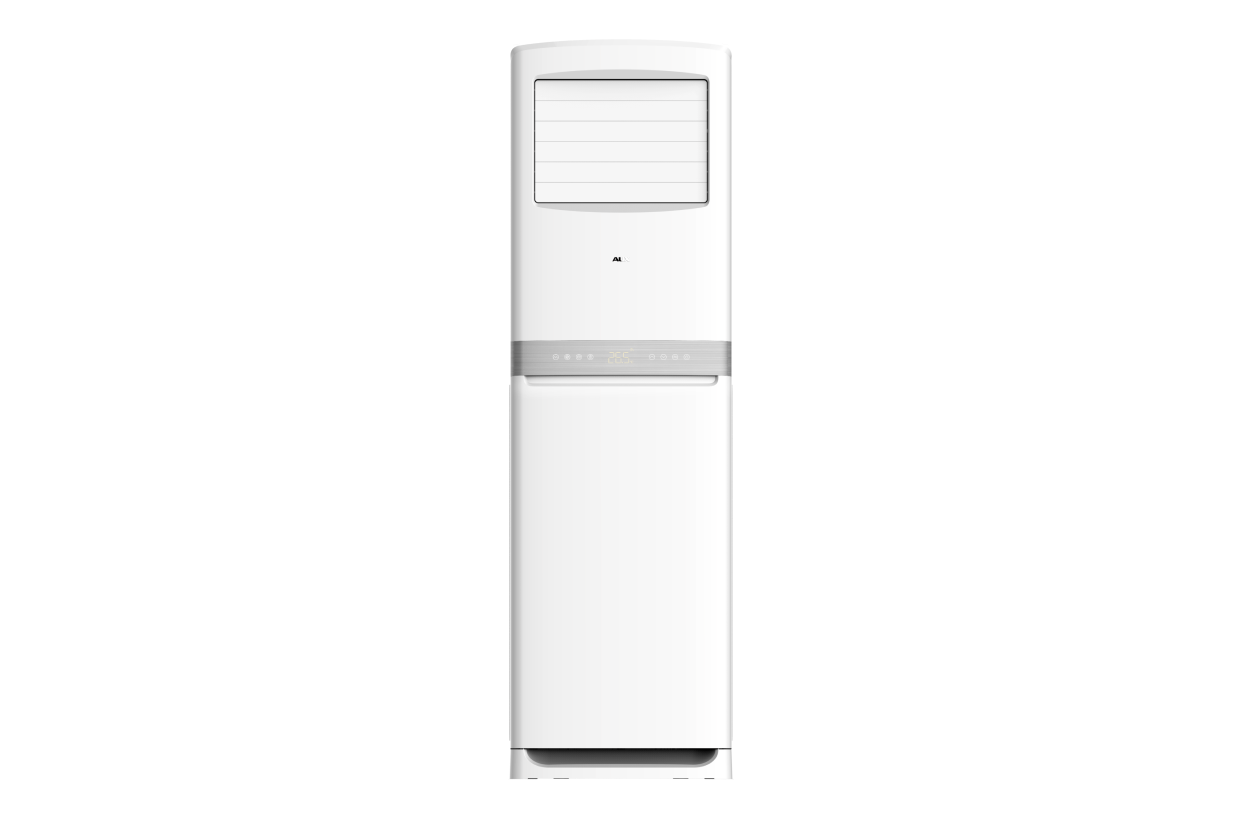

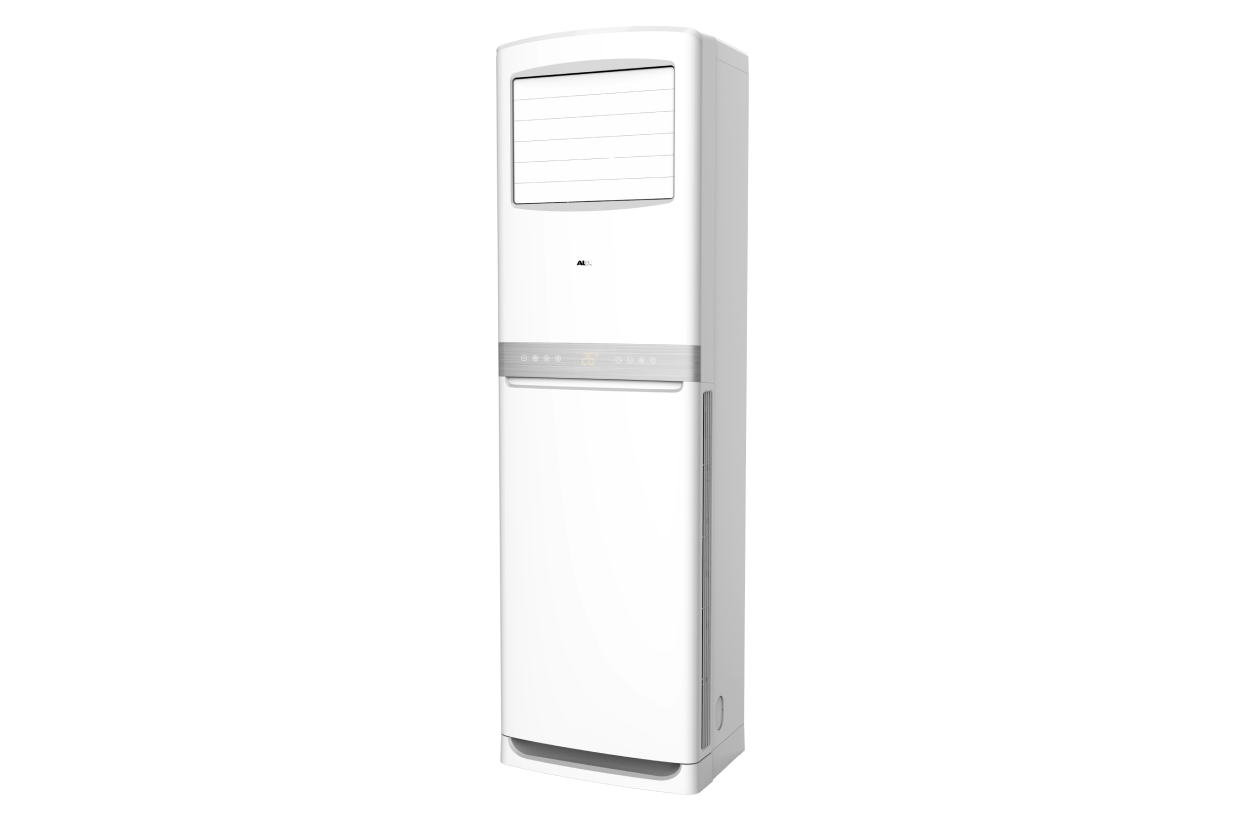

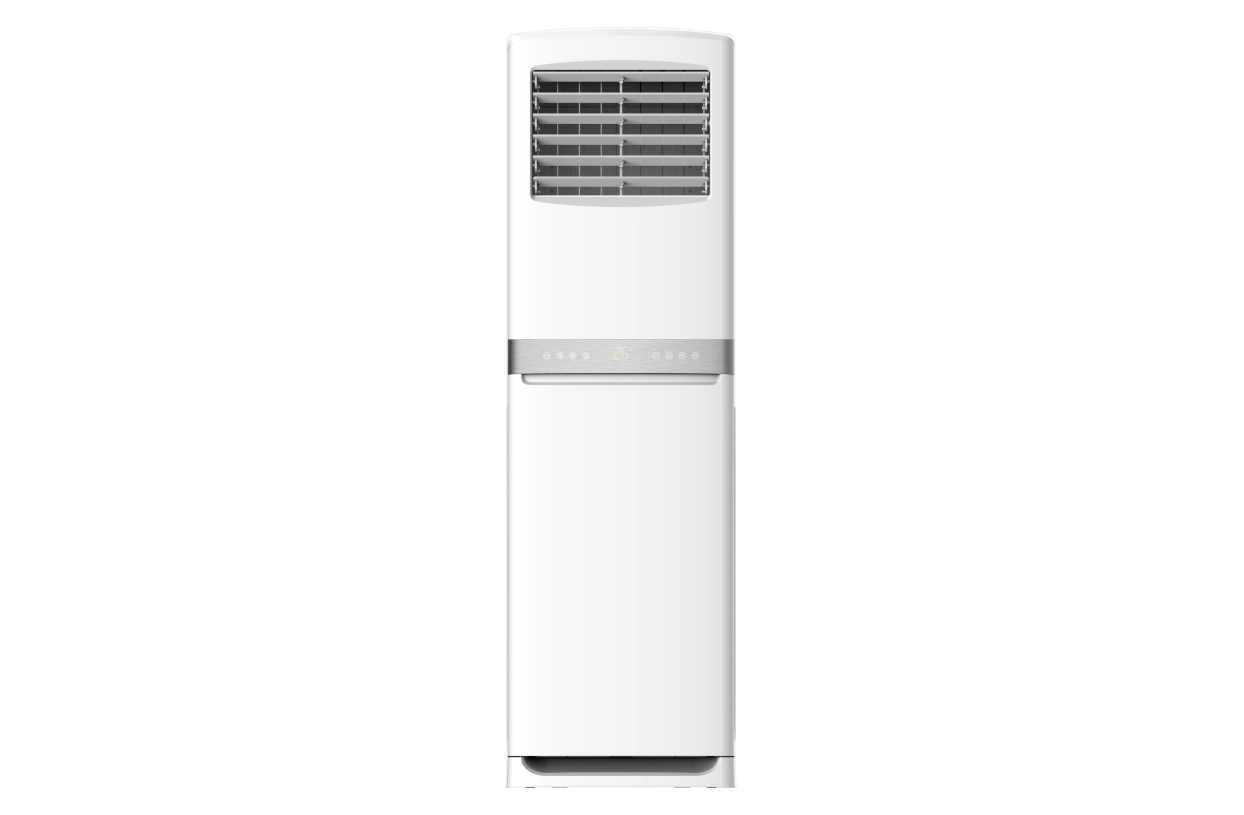

APC Floor -Standing
| PRODUCT SPECIFICATION SHEET | 48K | ||
| Nameplate Parameter | |||
| Rated Capacity | Cooling | KW | 14 |
| Rated Power Consumption | W | 5400 | |
| Rated Running Current | A | 9.5 | |
| Max. Input Power | W | 7500 | |
| Max. Input Current | A | 16 | |
| EER Cooling | W/W | 2.59 | |
| Power supply source | V/Ph/Hz | 380-415V 3N~/50Hz | |
| Refrigerant | / | R32 | |
| Air Flow Volume | m3/h | 1940 | |
| Indoor Noise level | dB(A) | 56/54/52 | |
| Outdoor Noise level | dB(A) | 61 | |
| Indoor unit weight(Net) | Kg | 55 | |
| Outdoor unit weight(Net) | Kg | 94 | |
| Indoor unit configuration | |||
| Dimension | Packing Type(6 face/4 face) | / | 6 |
| Net Dimension(WxDxH) | mm | 580*1925*400 | |
| Packing Dimension(WxDxH) | mm | 695*2075*555 | |
| Outdoor unit configuration | |||
| Dimension | Net Dimension(WxDxH) | mm | 940*1320*340 |
| Packing Dimension(WxDxH) | mm | 1070*1445*450 | |
| Connect pipe | |||
| Liquid tube Diameter | Inch | 3/8" | |
| Gas tube Diameter | Inch | 3/4" | |
| Container Loading 20/40/40HQ | unit | 16/35/42 | |
Product Parameters
APC Floor -Standing
| PRODUCT SPECIFICATION SHEET | 48K | ||
| Nameplate Parameter | |||
| Rated Capacity | Cooling | KW | 14 |
| Rated Power Consumption | W | 5400 | |
| Rated Running Current | A | 9.5 | |
| Max. Input Power | W | 7500 | |
| Max. Input Current | A | 16 | |
| EER Cooling | W/W | 2.59 | |
| Power supply source | V/Ph/Hz | 380-415V 3N~/50Hz | |
| Refrigerant | / | R32 | |
| Air Flow Volume | m3/h | 1940 | |
| Indoor Noise level | dB(A) | 56/54/52 | |
| Outdoor Noise level | dB(A) | 61 | |
| Indoor unit weight(Net) | Kg | 55 | |
| Outdoor unit weight(Net) | Kg | 94 | |
| Indoor unit configuration | |||
| Dimension | Packing Type(6 face/4 face) | / | 6 |
| Net Dimension(WxDxH) | mm | 580*1925*400 | |
| Packing Dimension(WxDxH) | mm | 695*2075*555 | |
| Outdoor unit configuration | |||
| Dimension | Net Dimension(WxDxH) | mm | 940*1320*340 |
| Packing Dimension(WxDxH) | mm | 1070*1445*450 | |
| Connect pipe | |||
| Liquid tube Diameter | Inch | 3/8" | |
| Gas tube Diameter | Inch | 3/4" | |
| Container Loading 20/40/40HQ | unit | 16/35/42 | |
