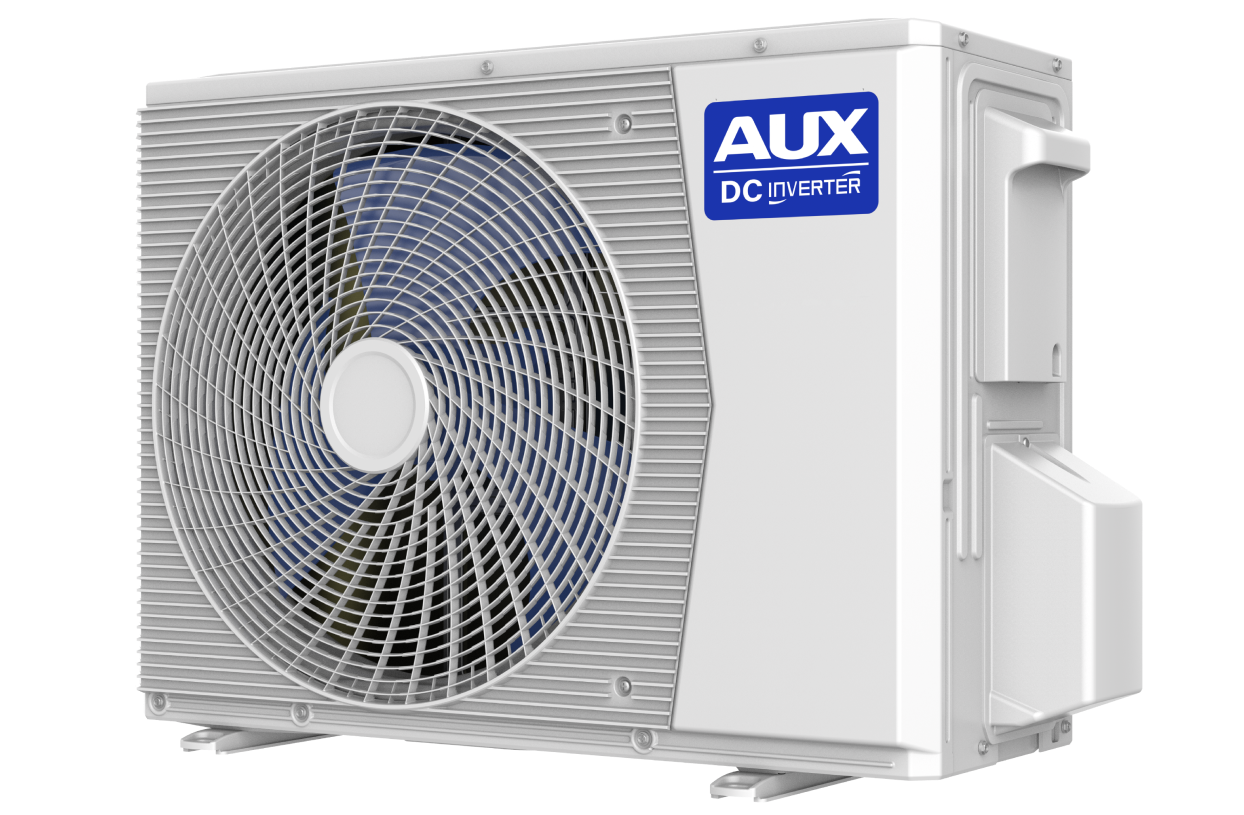

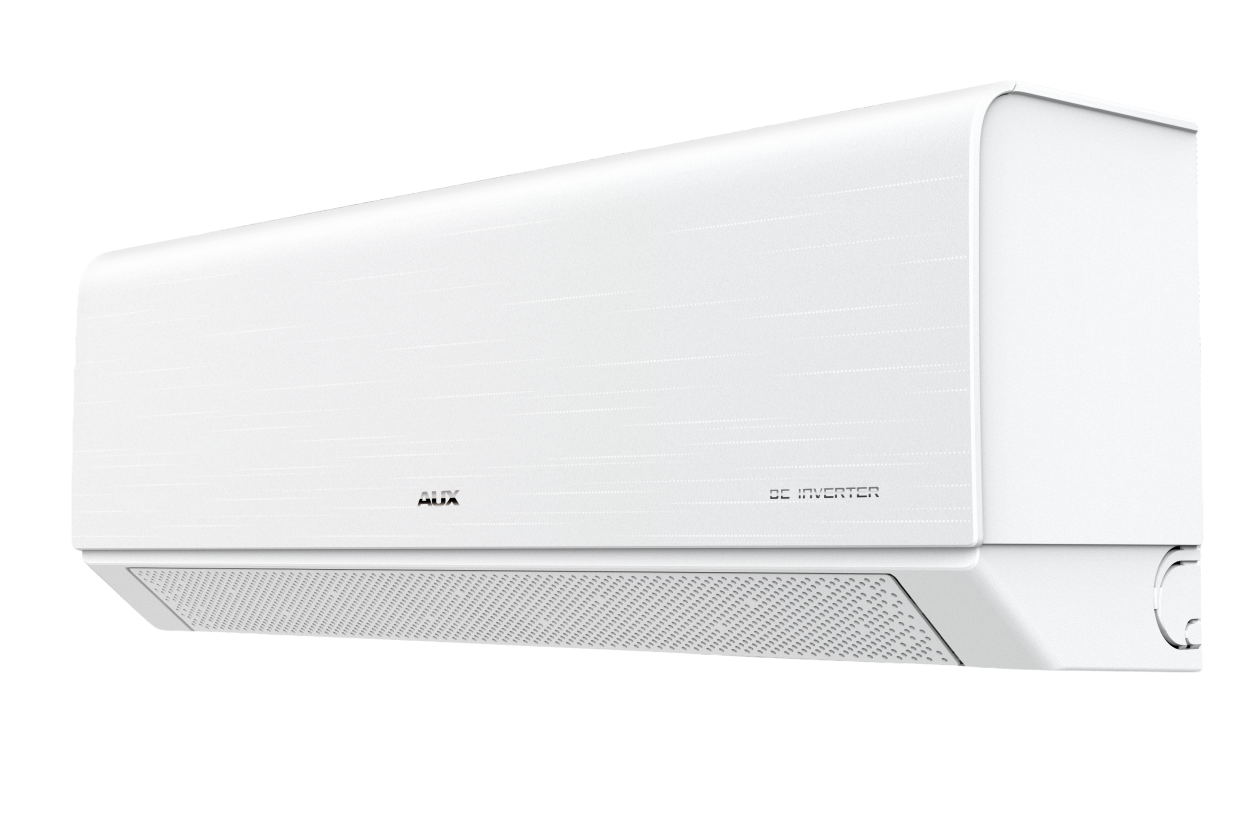

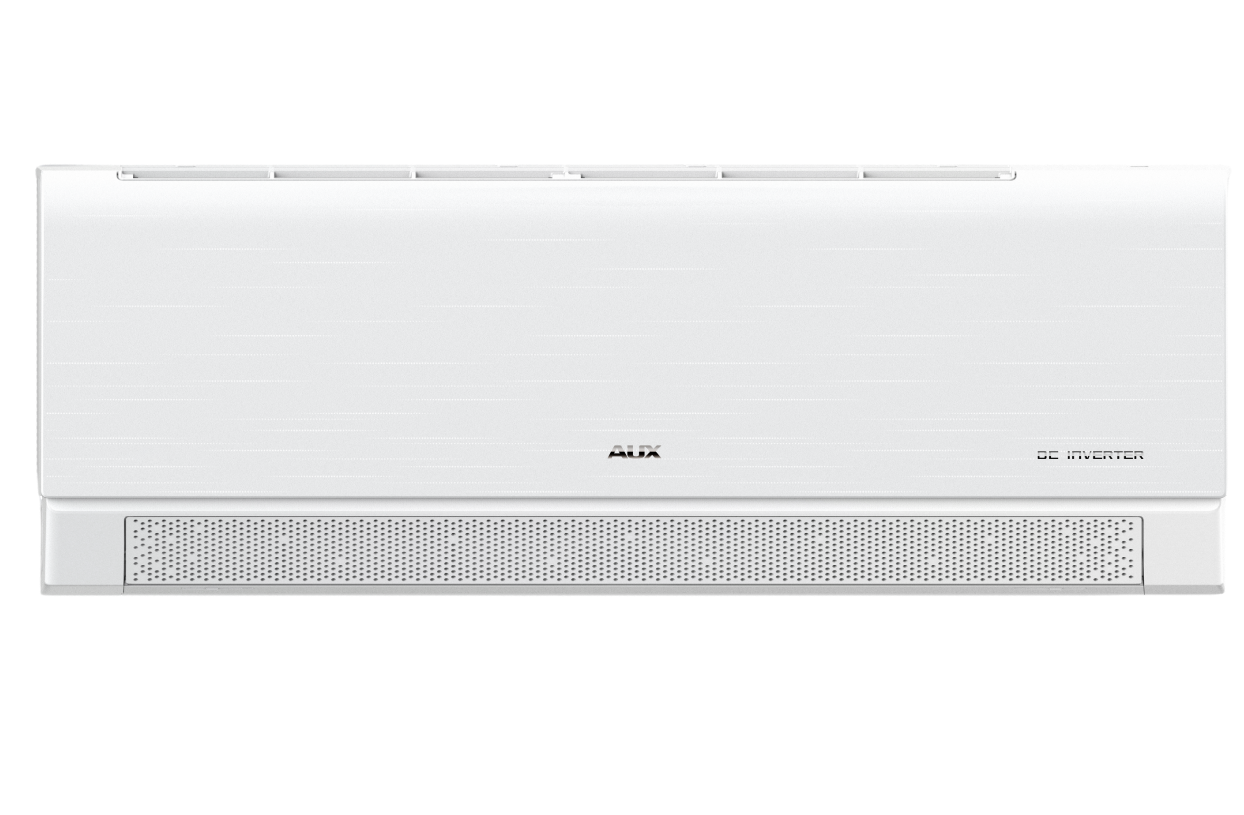

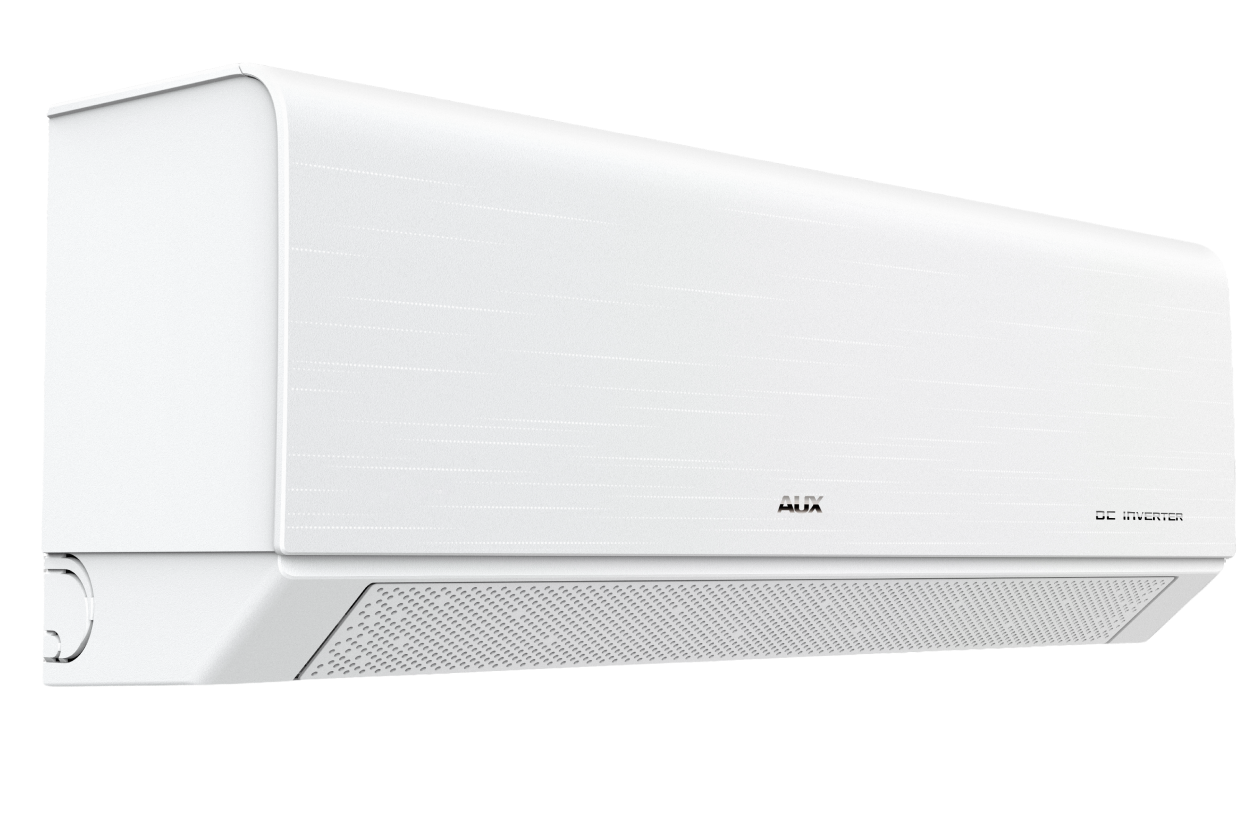

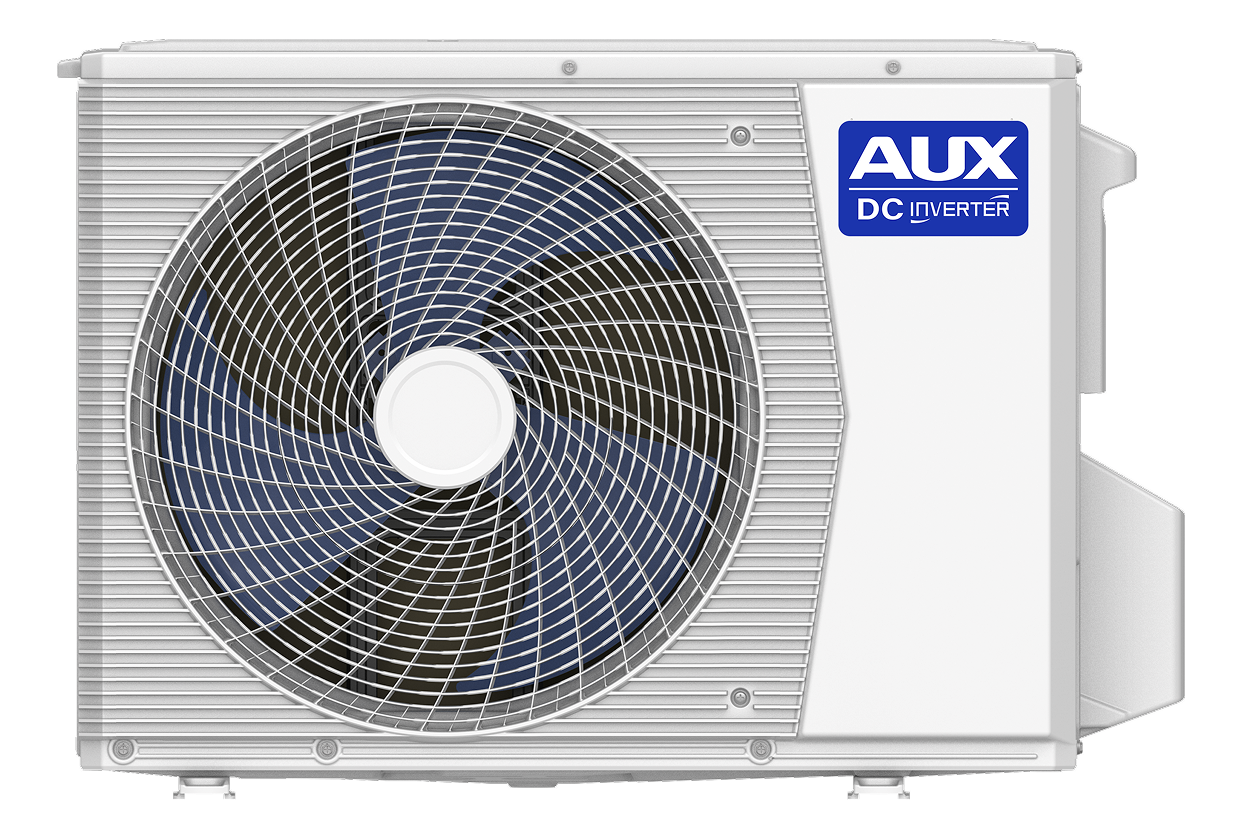

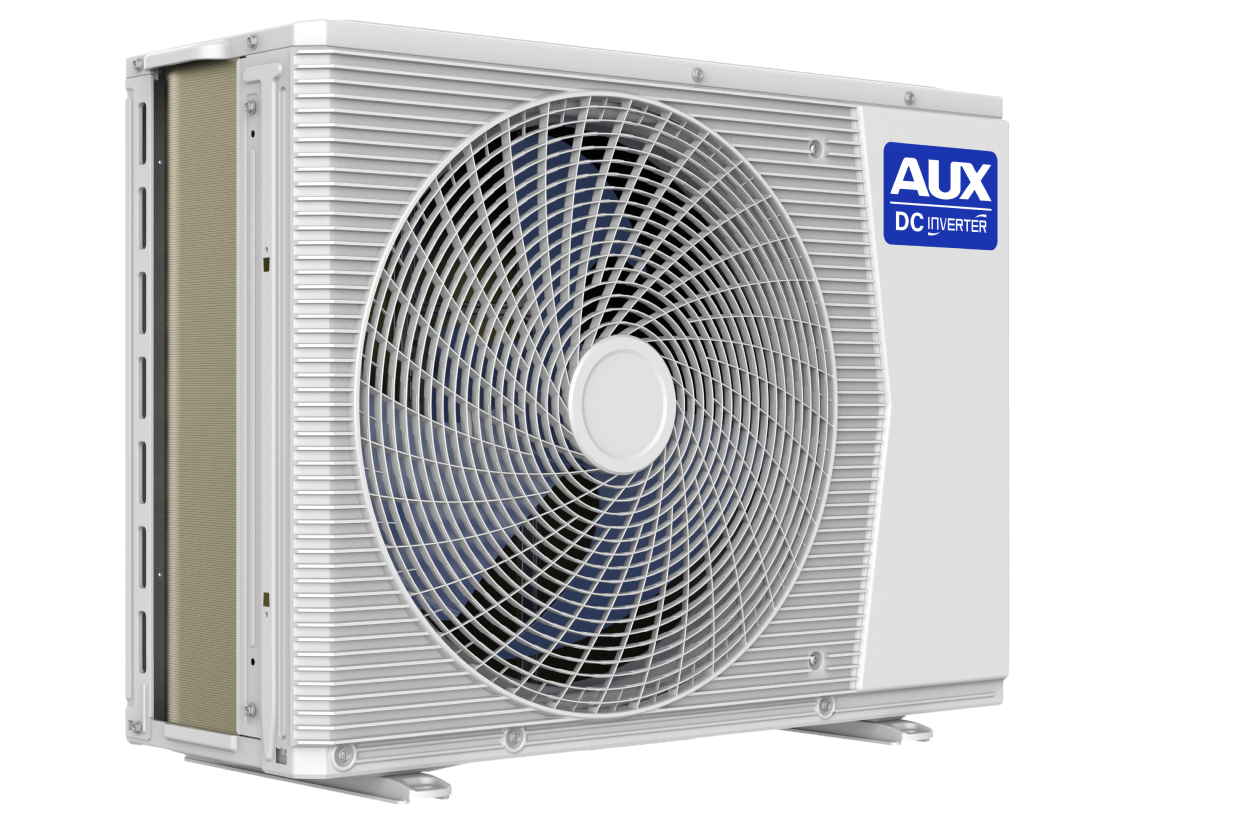

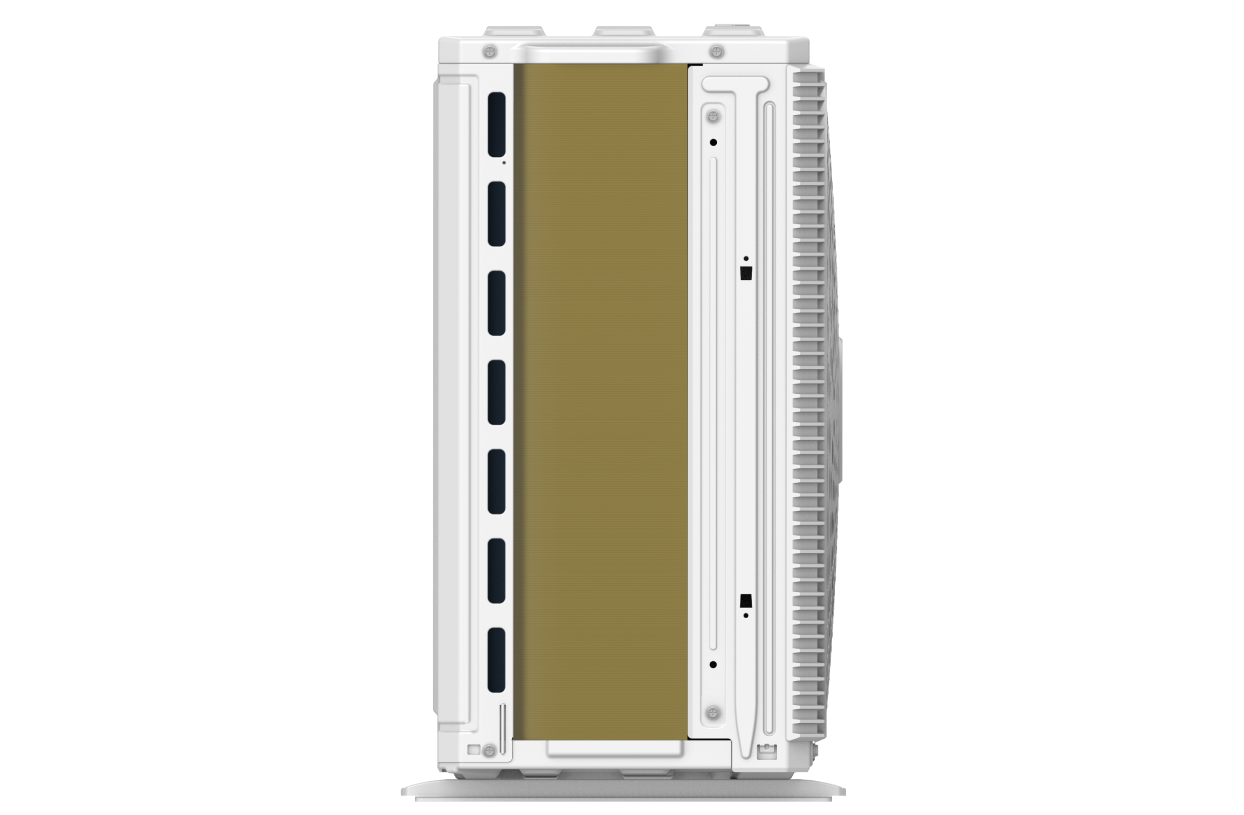

- CA INVERTER
SELLING POINTS
Amp Control
Amp Control

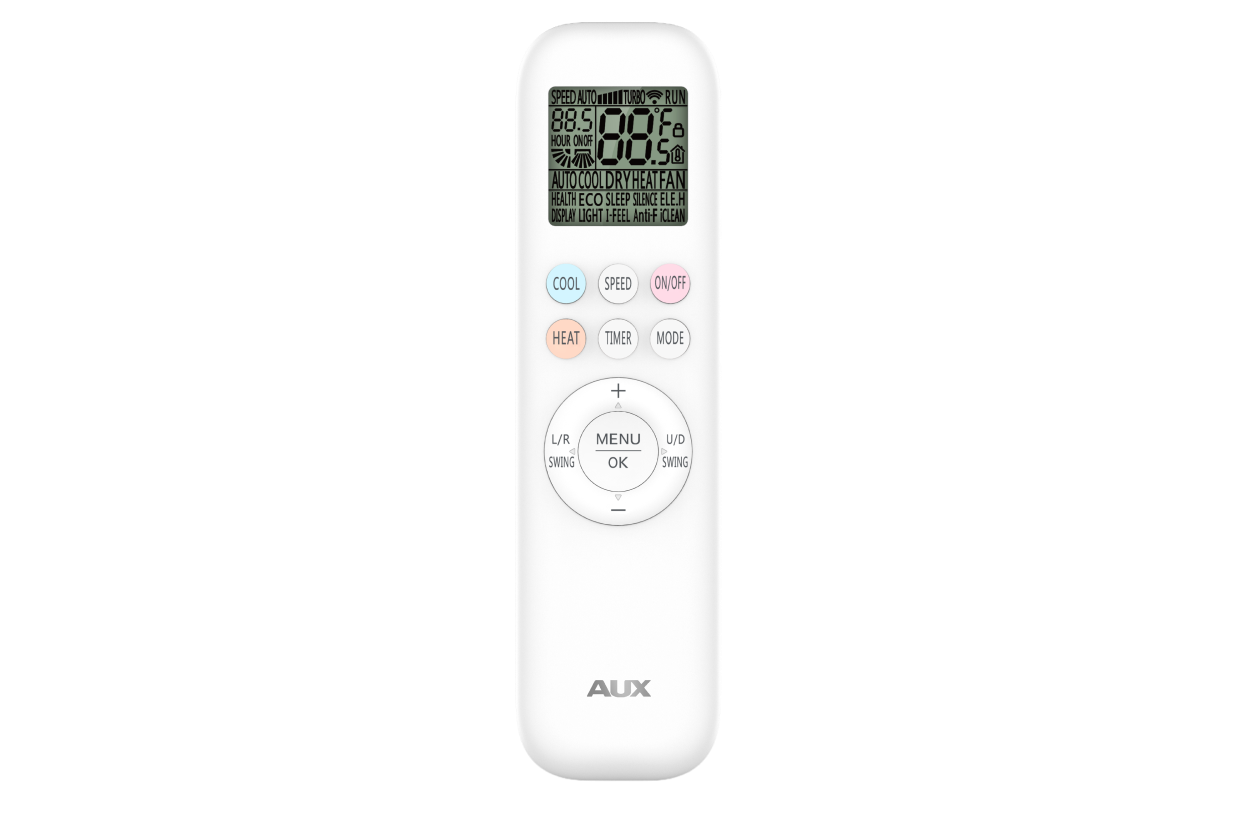

Set the power-limiting ratio on the remote control (90%, 75%, 60%, 50%, 40%) to implement different levels of power limiting (compressor frequency limiting).
Soft
Soft
The micro-perforated design of the air deflector disperses concentrated cold air, reduces air velocity, and creates a draft-free experience.
Fast Cooling
Fast Cooling
At startup, the compressor ramps up to 50 Hz at high speed (5 times the normal rate), maintains this frequency for 1 minute, and then continues to increase the frequency to quickly reach the set temperature, resulting in higher cooling efficiency.
Self-Cleaning
Self-Cleaning
4-Step Water Wash + Disinfection (Total runtime: 63 min)
① Condensation and Soaking: Runs in cooling mode with low fan speed to condense water droplets on the evaporator surface, saturating adhered dust and softening grime (2 min)
② Frosting and Dirt Removal: Water freezes into frost, expanding in volume to dislodge dust from the fin surfaces (9 min)
③ Condenser Frosting: Frost forms on the outdoor unit → defrosting; the defrost water automatically cleans the condenser (8 min)
④ Refreshing Air Purge: The indoor and outdoor fans operate at high speed for 3 minutes to expel residual moisture and fine dust, keeping the interior dry and fresh (3 min)
① Condensation and Soaking: Runs in cooling mode with low fan speed to condense water droplets on the evaporator surface, saturating adhered dust and softening grime (2 min)
② Frosting and Dirt Removal: Water freezes into frost, expanding in volume to dislodge dust from the fin surfaces (9 min)
③ Condenser Frosting: Frost forms on the outdoor unit → defrosting; the defrost water automatically cleans the condenser (8 min)
④ Refreshing Air Purge: The indoor and outdoor fans operate at high speed for 3 minutes to expel residual moisture and fine dust, keeping the interior dry and fresh (3 min)
Product Parameters
CA INVERTER
| PRODUCT SPECIFICATION SHEET | 5K | 9K | 12K | 18K | ||
| Nameplate Parameter | ||||||
| Rated Capacity | Cooling | KW | 1.5(0.6-2) | 2.64(0.6-3.2) | 3.6(0.8-3.8) | 5.3(1.3-5.5) |
| Rated Power Consumption | W | 350(100-630) | 740(100-1200) | 1100(200-15600) | 1500(230-2100) | |
| Rated Running Current | A | 1.6(0.46-2.92) | 3.8(0.56-5.32) | 5.2(0.9-7.4) | 7.5(2.2-9.6) | |
| Max. Input Power | W | 630 | 1300 | 1600 | 2400 | |
| Max. Input Current | A | 4.7 | 8 | 9 | 12 | |
| CSFF cooling | W/W | 5.2 | 5.2 | 4.5 | 5.0 | |
| Power supply source | V/Ph/Hz | 220-240V-1-50Hz | 220-240V-1-50Hz | 220-240V~/50Hz | 220-240V~/50Hz | |
| Refrigerant | / | R32 | R32 | R32 | R32 | |
| Air Flow Volume | m3/h | 500 | 600 | 550 | 950 | |
| Indoor Noise level | dB(A) | 39/35/31/26/21 | 39/35/31/29/21 | 40/35/32/29 | 48/46/42/38/38 | |
| Outdoor Noise level | dB(A) | 49 | 49 | 50 | 55 | |
| Indoor unit weight(Net) | Kg | 7 | 7.5 | 7.8 | 11 | |
| Outdoor unit weight(Net) | Kg | 16 | 16 | 20 | 26.5 | |
| Indoor unit configuration | ||||||
| Dimension | Packing Type(6 face/4 face) | / | 6 | 6 | 6 | 6 |
| Net Dimension(WxDxH) | mm | 716×285×194 | 776×298×202 | 776×298×202 | 1002×318×223 | |
| Packing Dimension(WxDxH) | mm | 774×354×274 | 831×371×282 | 831×371×282 | 1070×385×312 | |
| Outdoor unit configuration | ||||||
| Dimension | Net Dimension(WxDxH) | mm | 654×456×244 | 654×456×244 | 711×538×280 | 785×555×300 |
| Packing Dimension(WxDxH) | mm | 760×510×315 | 760×510×315 | 825×595×345 | 903×615×382 | |
| Connect pipe | ||||||
| Liquid tube Diameter | Inch | 1/4" | 1/4" | 1/4" | 1/4" | |
| Gas tube Diameter | Inch | 3/8" | 3/8" | 3/8" | 3/8" | |
| Container Loading 20/40/40HC | unit | 156/324/367 | 144/304/345 | 124/253/288 | 84/174/205 | |
