| Model |
Indoor Unit |
ASW-09MAR3DI |
ASW-12MAR3DI |
ASW-18MAR3DI |
ASW-24MAR3DI |

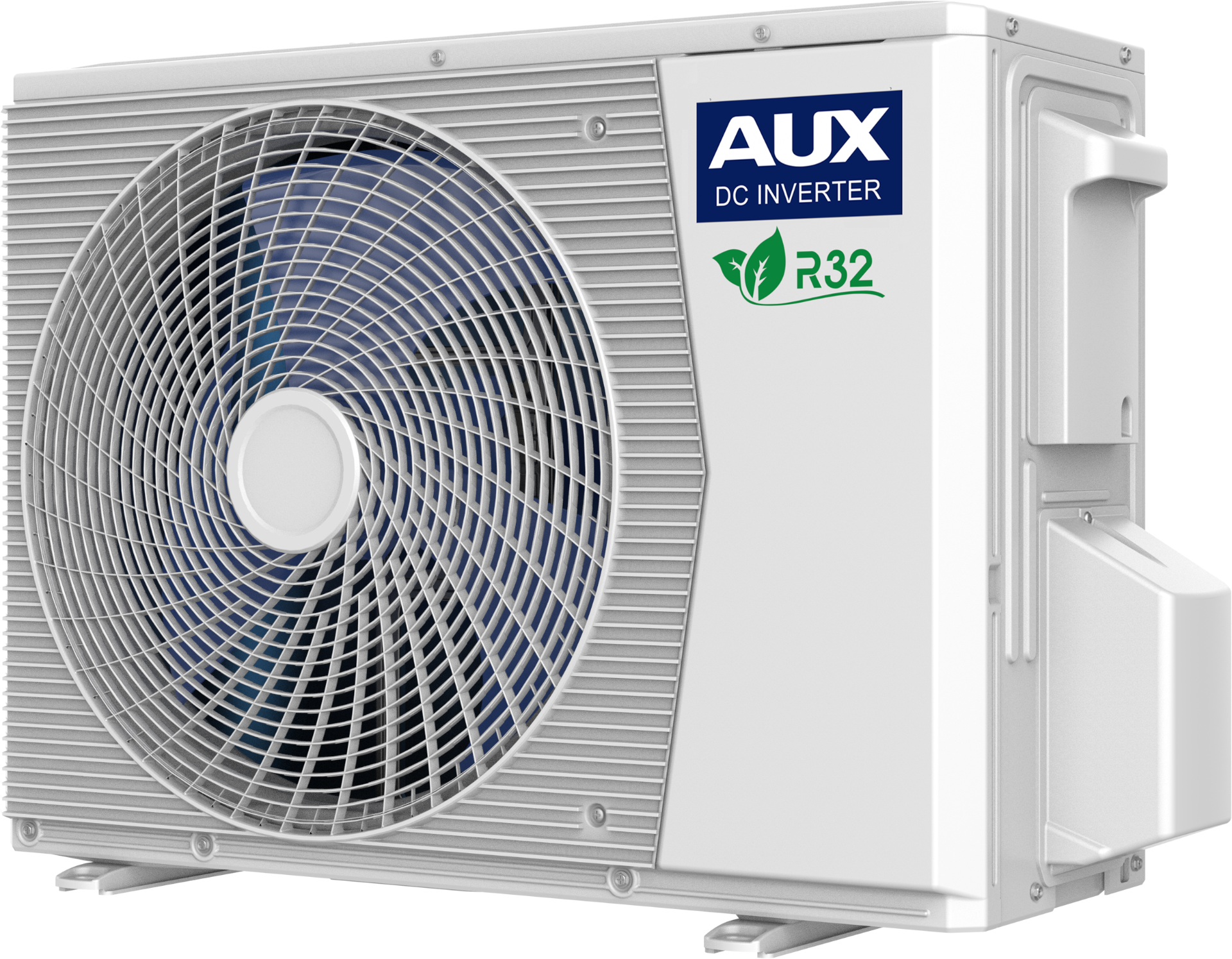

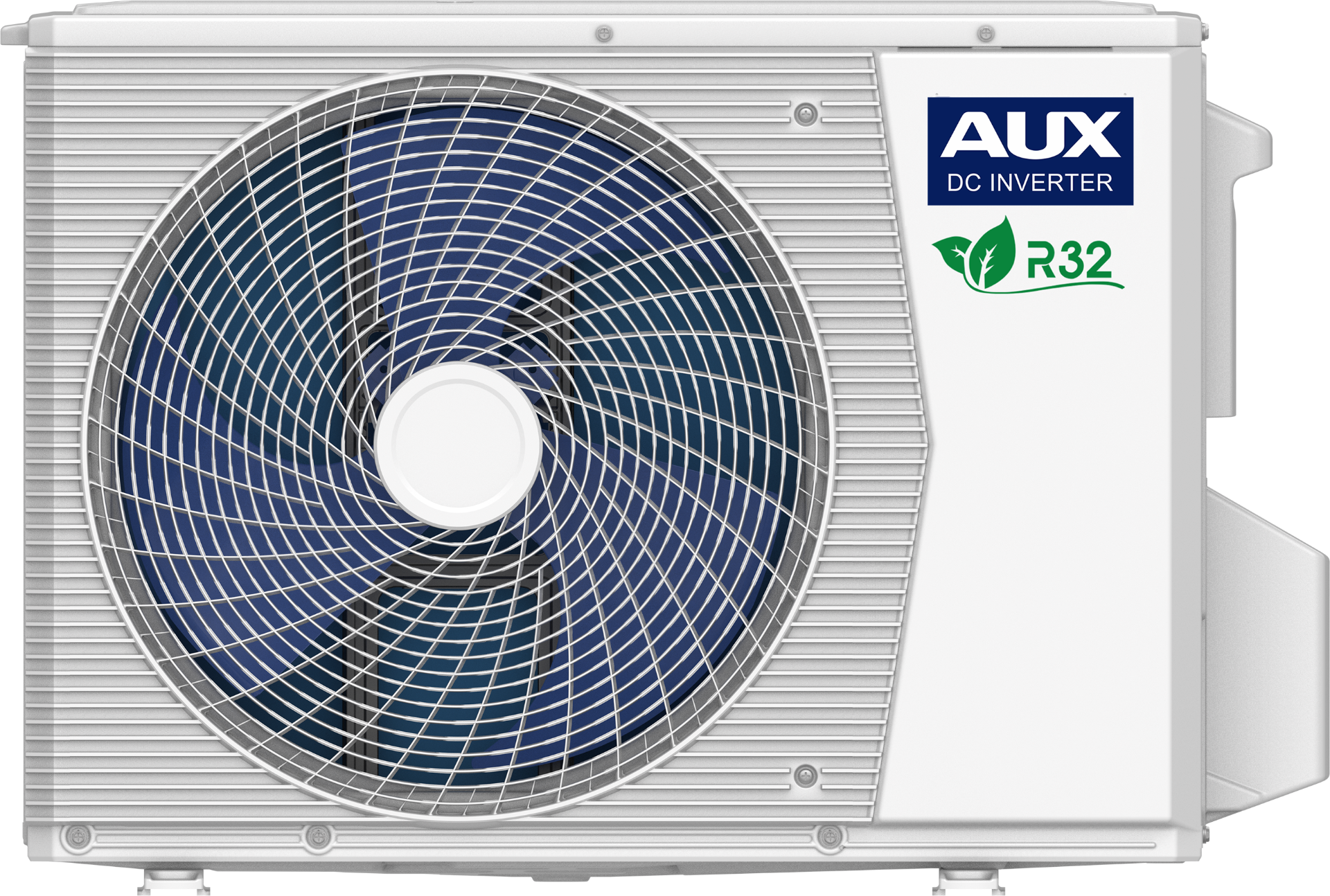

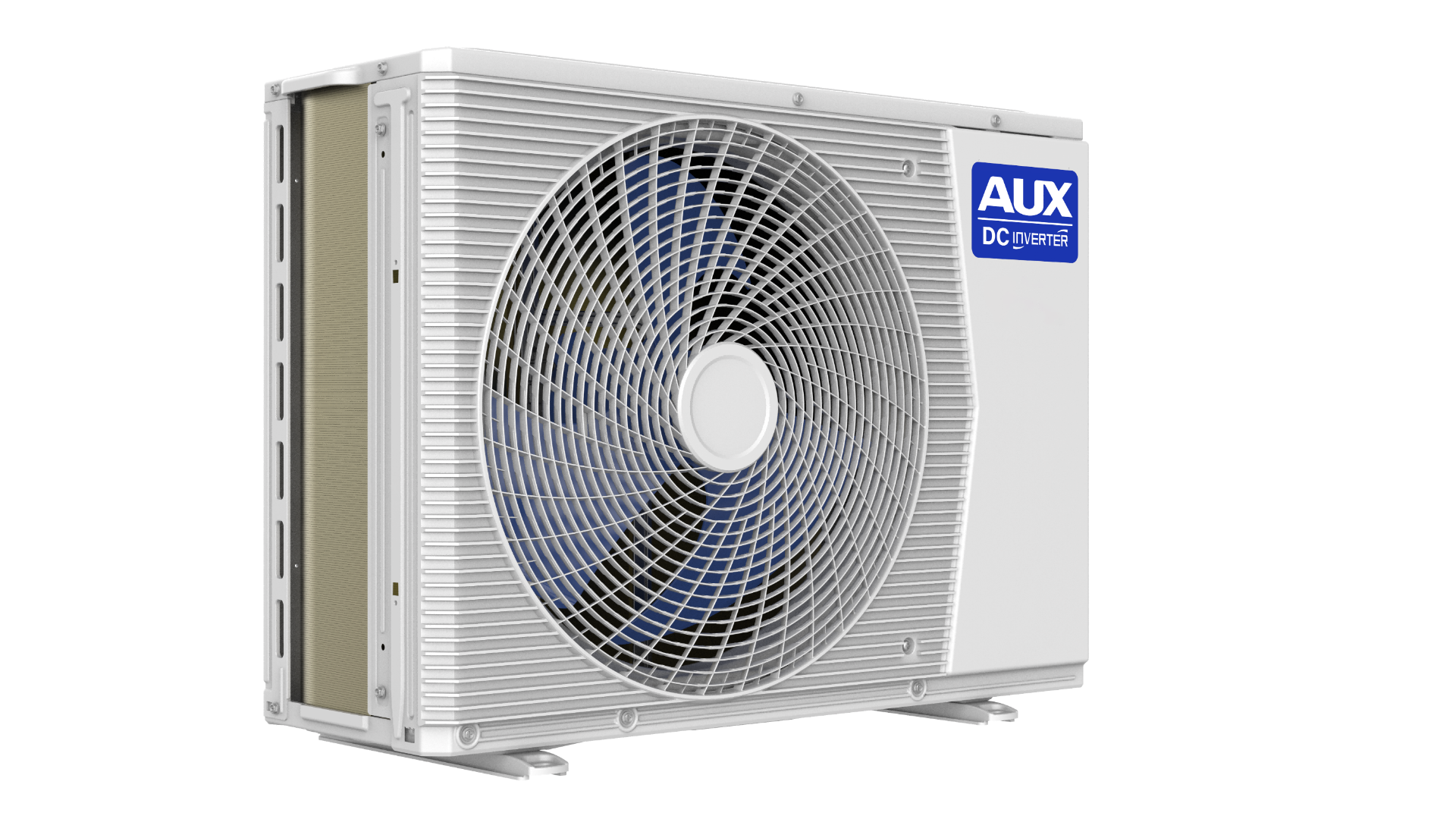

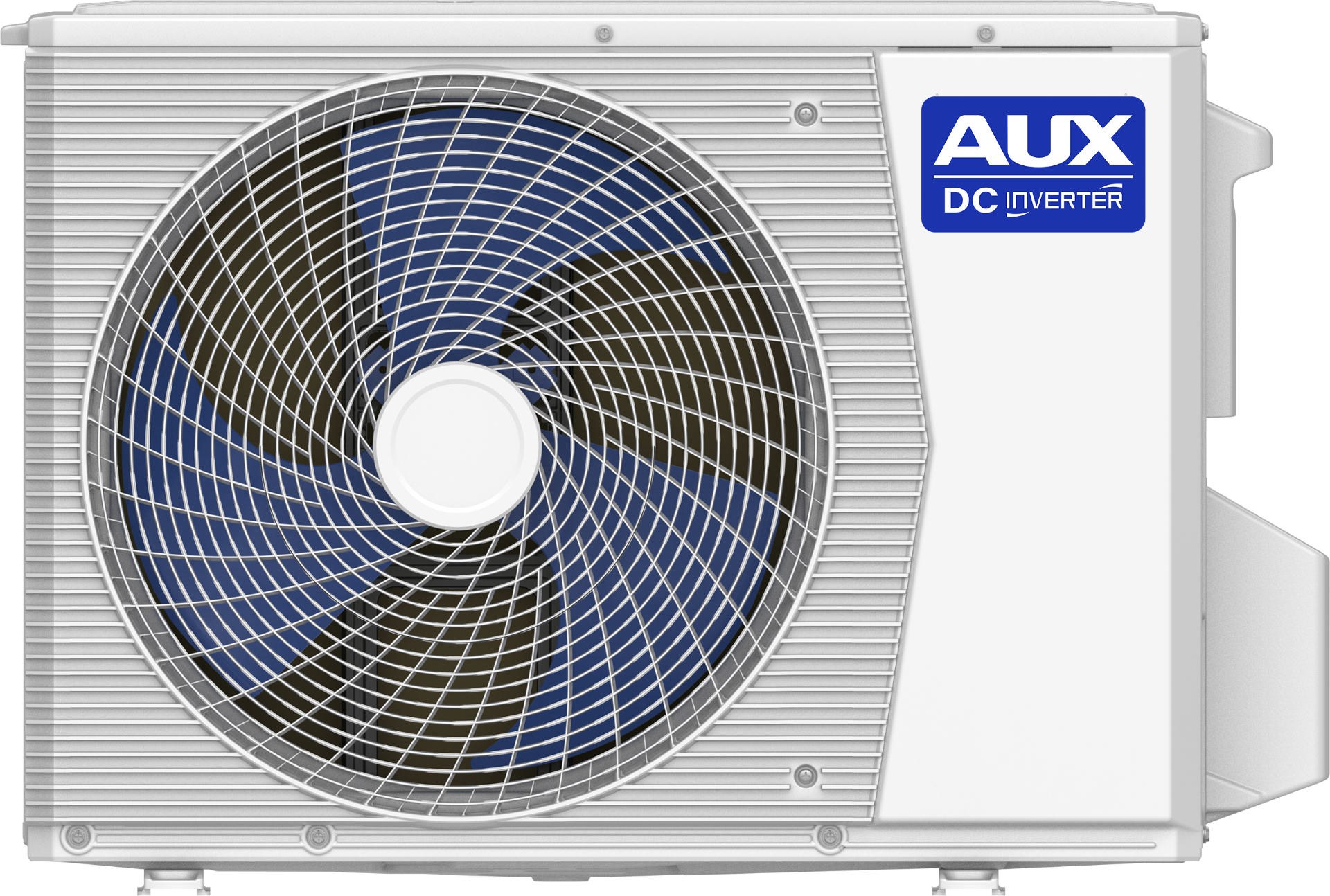

| Outdoor Unit |
AS-09MAR3DI |
AS-12MAR3DI |
AS-18MAR3DI |
AS-24MAR3DI |
| Cooling Capacity |
Rated(Min-Max) |
Btu/h |
10000(2050-13600) |
12300（4100-13600) |
18000(4440-18000) |
24000(6140-26000) |
| Power Consumption |
W |
960(100-1200) |
1170(400-1450) |
1730(240-2200) |
2160(230-2400) |
| Running Current |
A |
4.4(0.56-5.32) |
5.1(2.0-6.0) |
7.7(2.3-10.0) |
9.7(1.0-12.0) |
| CSPF(Cooling Seasonal Performance Factor) |
Wh/Wh |
4.81 |
4.84 |
5.03 |
5.33 |
| Horsepower |
HP |
1.0 |
1.5 |
2.0 |
2.5 |
| Energy Efficiency Star Rating |
 |
 |
 |
 |
| Power Supply |
V,Hz,Ph |
220-240V~,50Hz,1Ph (power supply to indoor Unit ) |
| Indoor Unit |
Indoor Air Flow (H) |
m³/h(cfm) |
600 (353) |
650（382） |
950（559） |
1300（765） |
| Indoor Sound Level (H/M/L) |
dB(A) |
38/35/32 |
38/34/31 |
43/40/36 |
47/43/39 |
| Dimensions (W*D*H) |
mm |
768*200*299 |
827*200*299 |
997*222*312 |
1140*229*334 |
| Weight |
kg |
7.5 |
8 |
11 |
13 |
| Outdoor Unit |
Outdoor Sound Level |
dB(A) |
52 |
51 |
52 |
58 |
| Dimensions (W*D*H) |
mm |
650*233*455 |
650*233*455 |
709*280*536 |
900*350*700 |
| Refrigerant Charge |
g |
R32/360g |
R32/360g |
R32/690g |
R32/1050g |
| Weight |
kg |
16 |
16 |
23 |
37 |
| Refrigerant Piping |
Liquid/Gas Pipe Side |
mm(inch) |
Φ6.35/Φ9.52(1/4"/3/8") |
Φ6.35/Φ9.52(1/4"/3/8") |
Φ6.35/Φ12.7(1/4"/1/2") |
Φ6.35/Φ12.7(1/4"/1/2") |
| Max. Difference Pipe Length |
m |
25 |
25 |
25 |
30 |
| Max. Difference in Level |
m |
10 |
10 |
10 |
20 |
| Indoor-Outdoor Connection Wiring (not included) |
4x1.0mm² |
4x1.0mm² |
4x1.5mm² |
4x2.5mm² |
| Power Supply Wiring (not included) |
3x1.0mm² |
3x1.0mm² |
3x1.5mm² |
3x2.5mm² |
| Thermostat Type |
Wireless Remote Control (USB Wi-Fi , optional) |
